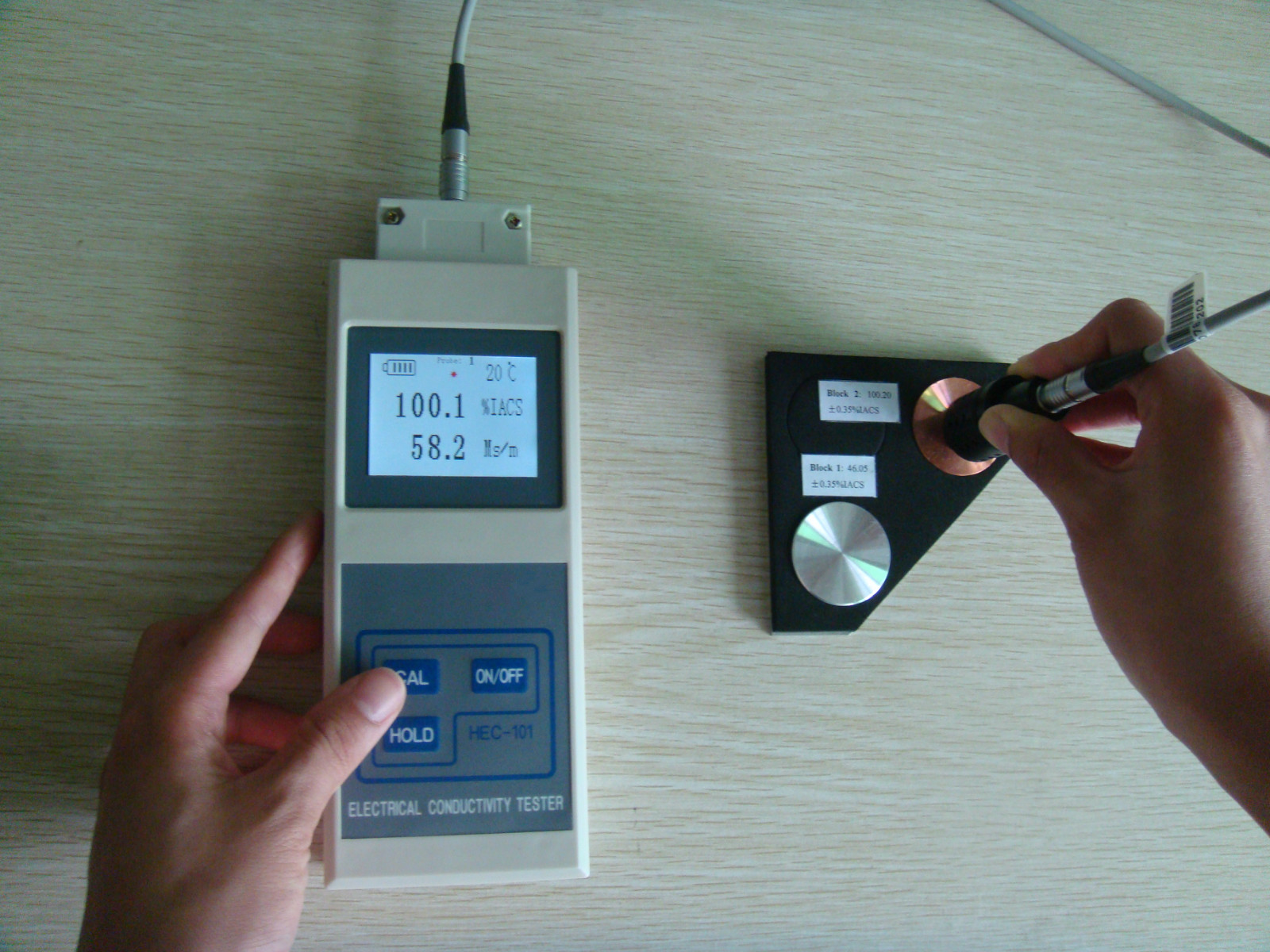

Digital Portable Eddy Current Electrical Conductivity Meter,
Eddy Current Meter REC-101
REC-100 series of eddy current electrical conductivity meters,
which are designed for quick &
convenient measurement of material property, such as material
separate,quality control,material
state check and so on. The products use the electromagnetism
testing principle, can testing objects
focus on non-ferromagnetic materials.
REC-100 series products use 60 KHz (aviation industry standard) to
inspirit, the testing data can be
read in two kinds of unit (%IACS and MS/m). The products can test
electrical conductivity and resistivity
at the same time, and they include the intelligent temperature and
lift-off compensations, thus can
guarantee the testing accuracy of each measurement. The big
typeface and the back light illumination
designs are advantageous for users to take the testing data even in
low light condition. The products
use the high property battery to make sure it keeps more running
time, and because of their mini-size,
you could easy to carry and to grasp hold. The design of the
products are more advantages, such as
users can replace the probe in the outdoor, don’t need to return
the company to adjust the probe into
matching the meter.
It can store 1000 measurement data, moreover, users can use USB
connect
the meter to a PC to create testing report.
Application:
★ Absolute measurement of electrical conductivity of nearly all
non-ferrous metals；(Ti – Ag)
★ In the aerospace and automotive industry,monitor the process of
heat treatment, the strength and
hardness of aluminum alloy；
★Test the conductivity when the aluminum have not been oxidized；
★ Measurement the purity of non-ferrous metals；
★Test the resistivity of conductive materials；
★Analyze thermal properties of materials.
REC-101 Technical parameters
NAME
| CONTENT | NOTE |
Measurement technology
| Eddy current | |
Operating frequency
| 60KHz | |
Display screen
| Monochrome | |
L*B*H
| 180*76*35 mm | |
| Instrument case | Anti-intense impact,water-proofing
polyester |
Match the fixed belt the leather protective covering
|
Weight
| 300g | Contain battery |
Power supply
| High capacity, high performance lithium polymer battery |
Not back light illuminate may keep on working about 100 hours.
|
Measuring range
| 1%IACS—105%IACS(0.58 MS/m -61MS/m) | |
Distinguishing rate
| 0.1% IACS | |
| Measuring accuracy |
5°C to 40°C
23%IACS :±0.5%IACS
100%IACS :±8%IACS
| |
| Temperature compensation | 5°C～40°C |
Automatic compensation function
|
| Normal work environment |
Relative humidity
| 0～95% | |
Operating temperature
| 5℃～40℃ | |
Language
| Chinese,English | |
| Fitting | Portable box; probe; probe in cable; operating manual; conductivity
standard sample; adapter |
Conductivity sample installs in the instrument, to verify and
guarantee temperature compensation
|
| Probe Diameter |
12.7mm
(Applicable to minimum measuring area
diameter at 60KHz is13mm.)
| |
