Digital Portable hardness tester, inbuild printer hardness tester,
steel hardness test RH-150
Features:
1.Large screen(128×64 dot matrix LCD), showing all functions and
parameters.
2.Test at any angle, even upside down.
3.Support "forged steel (Steel)" material, when using the D/DC
impact device test "forged"
sample, can read HB value directly, without the need for manual
checking table.
4.Wide measuring range. It can measure the hardness of all metallic
materials. Direct display of
hardness scales HRB, HRC, HRA, HV, HB, HS, HL and three types of
strength values
immediately.
5.Seven impact devices are available for special application.
Automatically identify the type of
impact devices.
6.Large capacity memory could store 600 groups (Relative to average
times32～1 ) information
including single measured value, mean value, testing data, impact
direction, impact times,
material and hardness scale etc.
7.Upper and lower limit can be preset. It will alarm automatically
when the result value exceeding
the limit.
8.Battery information indicates the rest capacity of the battery
and the charge status.
9.User calibration function.
10.USB port with the PC humanity multi-functions data proceeding
software.
11.Original imported high speed thermal printer support the
immediate printing function. It can
save data permanently.
12.NI-MH rechargeable battery as the power source. Charge circuit
integrated inside the
instrument. Continuous working period of no less than 200 hours (EL
off and no printing).
13.Auto power off to save energy.
14.Industrialized housing design, sturdy, compact, portable, high
reliability, suitable for harsh
operating environment, vibration, shock and electromagnetic
interference.
15.Excellent after-sale service system for high quality
products---two years’ guarantee and all life
maintenance. Easy to buy and comfortable to use.
Main Application:
1.Die cavity of molds
2.Bearings and other parts
3.Failure analysis of pressure vessel, steam generator and other
equipment
4.Heavy work piece
5.The installed machinery and permanently assembled parts
6.Testing surface of a small hollow space
7.Material identification in the warehouse of metallic materials
8.Rapid testing in large range and multi-measuring areas for
large-scale work piece.
Specification:
| RH-150 |
Measuring range
| HLD (170-960), HRC (17.9-69.5),HB (19-683), HV (80-1042), HS
(30.6-102.6), HRA(59.1-88), HRB (13.5-101.7) |
Measuring direction
| 360° |
Hardness Scale
| HL, HB, HRB, HRC, HRA, HV, HS |
Display
| Dot matrix LCD, 128×64 dots |
Data memory
| 100- max 600 groups. (relative to impact times 32～1) |
Printing paper
| width is (57.5±0.5)mm, diameter is 30mm |
Battery pack
| 6V NI-MH |
Battery charger
| 9V/500mA. |
Continuous working period
| about 200hours (With backlight off, no printing) |
Interface
| USB2.0 |

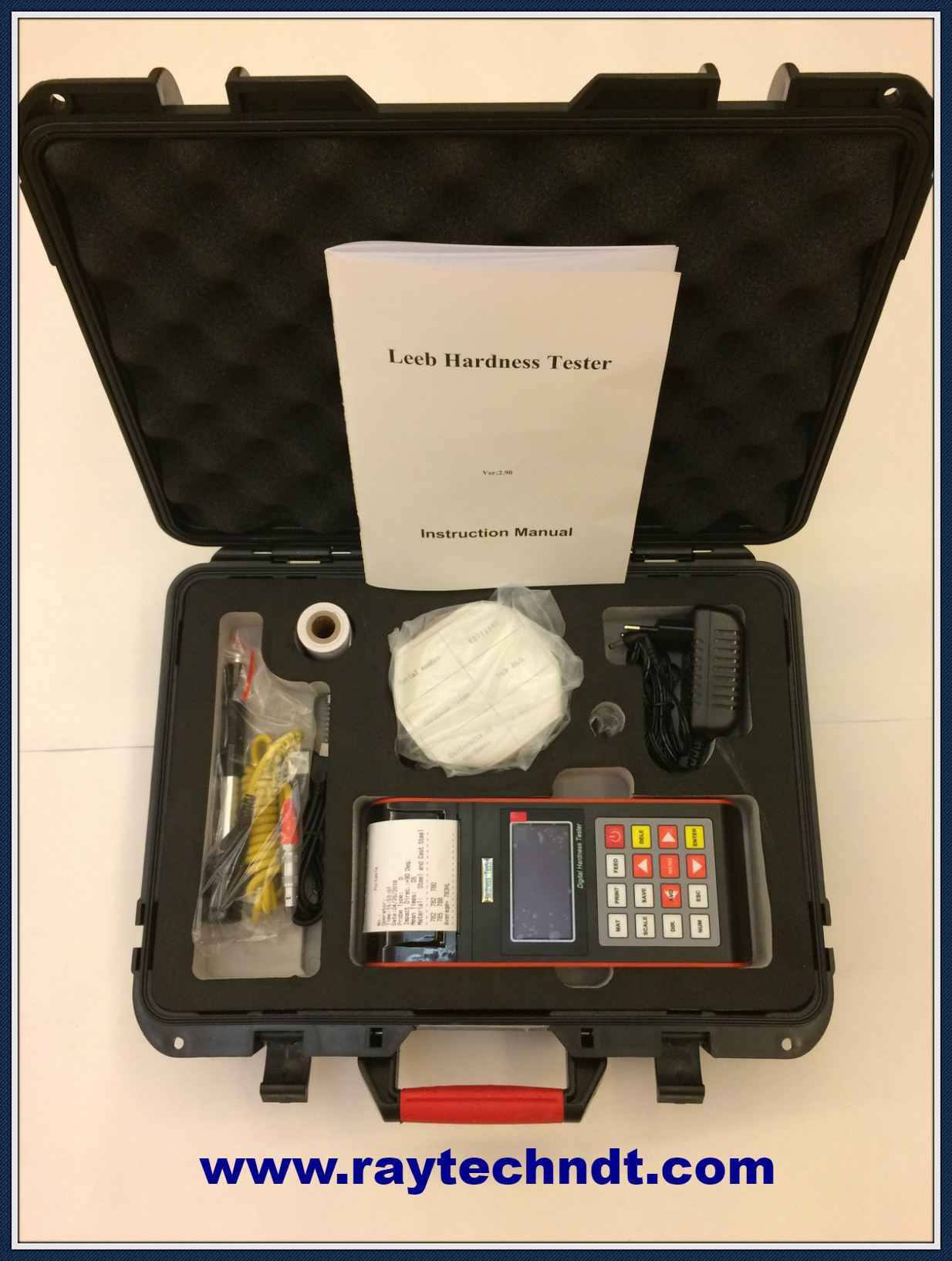

Standard configuration:
| No. | Item | Qty | Remarks |
Standard Configuration | 1 | Main Unit | 1 |
|
| 2 | D type impact device | 1 | With cable |
| 3 | Standard test block | 1 |
|
| 4 | Cleaning brush (I) | 1 |
|
| 5 | Small support ring | 1 |
|
| 6 | Battery Charger | 1 | 9V 500mA |
| 7 | Paper for printing | 1 |
|
| 8 | Manual | 1 |
|
| 9 | DataPro software | 1 |
|
| 10 | Communication cable | 1 |
|
| 11 | Instrument case | 1 |
|
| 12 | Cleaning brush (II) | 1 | For use with G type impact device |
Optional | 13 | Other type of impact devices and support rings |
|
|
